1971795-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1971795-1
Datasheet:
Description:

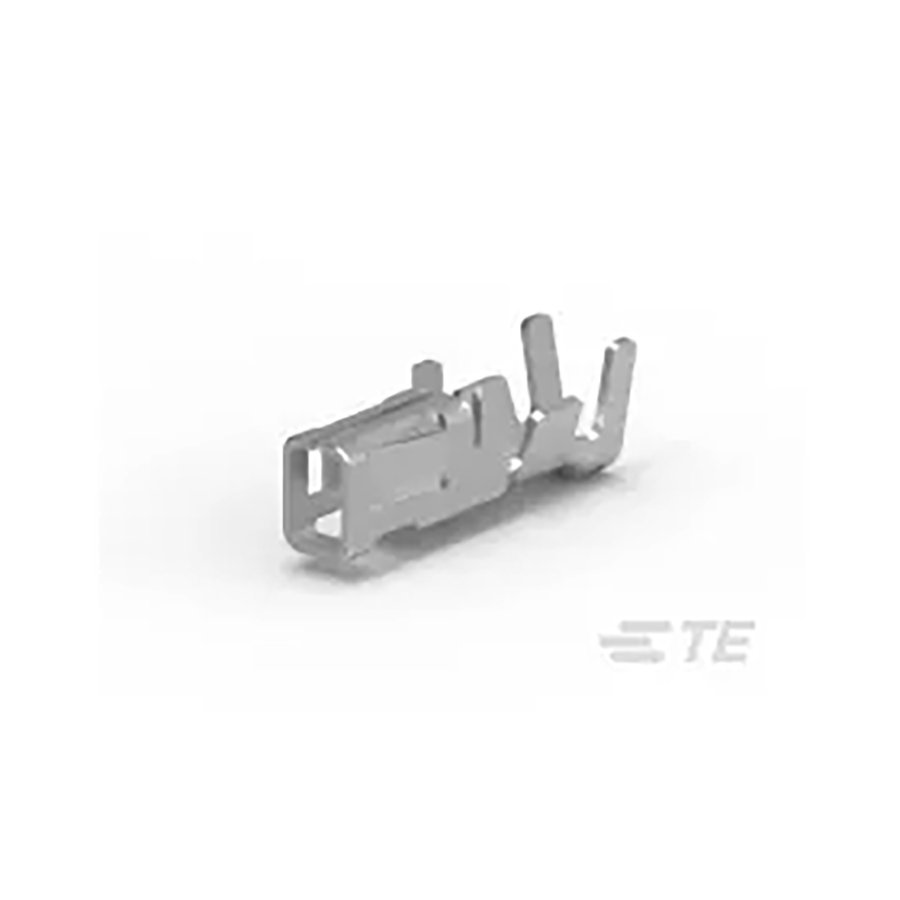

Headers and Wire Housings Cable Socket
| Parameter | Value |
|---|---|
| Length | 7.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Pitch | |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 28 AWG to 22 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 3 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 28 AWG |
| Insulation Diameter | 1.4986 mm |
| Plating Thickness | 2 µm |
| Mating Post Length | |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 3955
Distributors
pcbx
pcbxUnit Price$0.07672
Ext.Price$0.07672
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07672 | $0.07672 |
| 10 | $0.03836 | $0.38360 |
| 50 | $0.02951 | $1.47550 |
| 100 | $0.02270 | $2.27000 |
| 500 | $0.02056 | $10.28000 |
| 1000 | $0.01862 | $18.62000 |
| 3000 | $0.01656 | $49.68000 |
| 5000 | $0.01572 | $78.60000 |
| 10000 | $0.01493 | $149.30000 |
| 30000 | $0.01418 | $425.40000 |
| 50000 | $0.01346 | $673.00000 |
